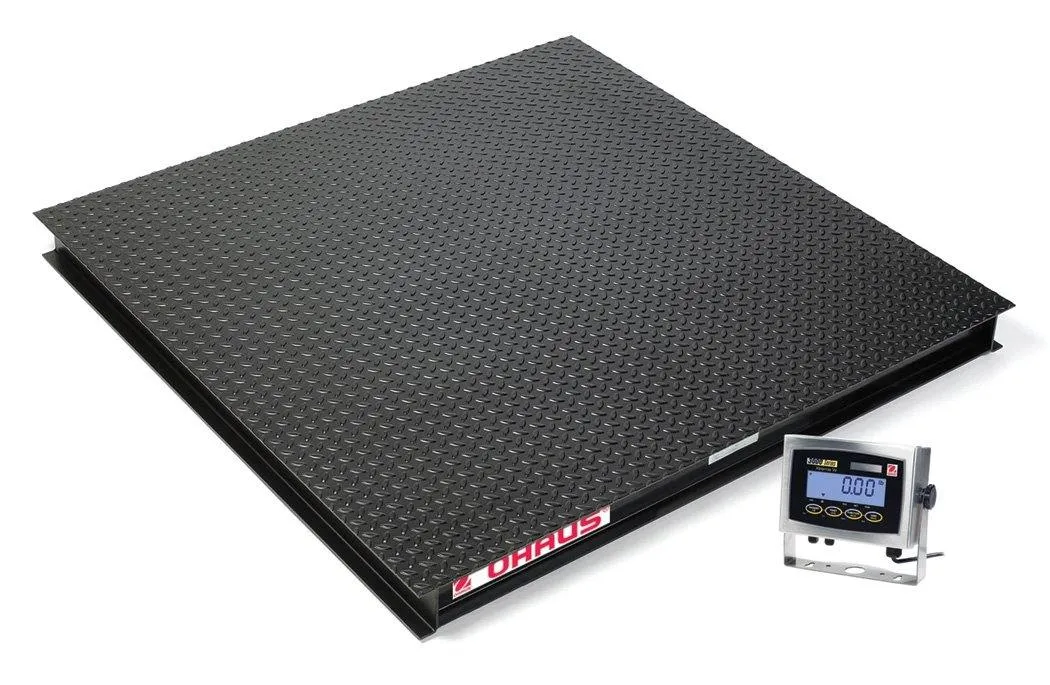

The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.

Complete with durable T32XW Washdown Indicator, the VX Series Floor Scales display in lb or kg, include a counting mode, geographical gravity correction for quick adjustment to local conditions.

• Durable epoxy painted steel frame and platform with NEMA4X/IP65 stainless steel indicator, NEMA4X/IP67 sealed stainless steel junction box and IP67 sealed loadcells
• Includes internal rechargeable battery
• Modes for weighing and counting, includes RS232 output for printing or connection to a PC
• 1 Year Warranty

Ohaus - VX32XW10000X
Capacity	10,000 lbs
Readability	2 lbs
Pan Size	152cm x 152cm / 60" x 60"
Display Dimensions (L x W x H)	8.3 x 2.8 x 5.8" / 21.2 x 7.1 x 14.9 cm
Display Material	304 stainless steel, NEMA4X/IP66 dust and water protection
Platform Material	Painted Carbon Steel, treaded surface, fixed top plate, thickness 5/16"
Load Cell	4 x Shear Beam, IP67, nickel plated alloy steel
LC Output Impedance / Excitation Voltage	350 Ω ± 3 Ω / 10VDC recommended ~15VDC max
Junction Box	Side panel access, IP65 plastic case with 25' indicator cable
Platform Dimensions (L x W x H)	60 x 60 x 4.5" / 153 x 153 x 11.5 cm
Safe End Load Capacity	100% of maximum capacity
Maximum Central Load	100% of maximum capacity
Feet	4 x fixed bolt design, adjustable height
Operating Temperature	50°F to 104°F / 10 °C to 40 °C
Weighing Units	lb, kg, oz, g, lb-oz
Display	1" / 25 mm high, 6-digit, 7-segment, bright white backlit LCD
Keypad	4-button, raised with tactile positive feedback membrane switches
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3d
Zeroing Range	0%, 2% or 100% of capacity
Span Calibration	5 lb or kg to 100% of capacity
Interface	RS232C, bi-directional
Power	100-240 VAC / 50-60 Hz, internal power supply
